Add-Ons

UI Development Expansions

Add-Ons to Take Projects Even Further

Expand your Mathworks Simulink® project functionality by easily adding feature-rich graphical interface displays and controls from GL Studio. The GL Studio components easily drop into the Simulink canvas and connect to data without any coding. In just a few clicks you’re up and running!

WATCH Blockset for Simulink

GLS Blockset for Simulink

GL Studio offers many UI development expansions. Easily add feature-rich UI displays and controls to your Mathworks Simulink® project.

GL Studio content easily drops into the Simulink canvas and connects to data without any coding. In just a few clicks, you’re up and running with our UI display software.

Tool Highlights

Drag and drop interfaces

No code connections

Bidirectional communication

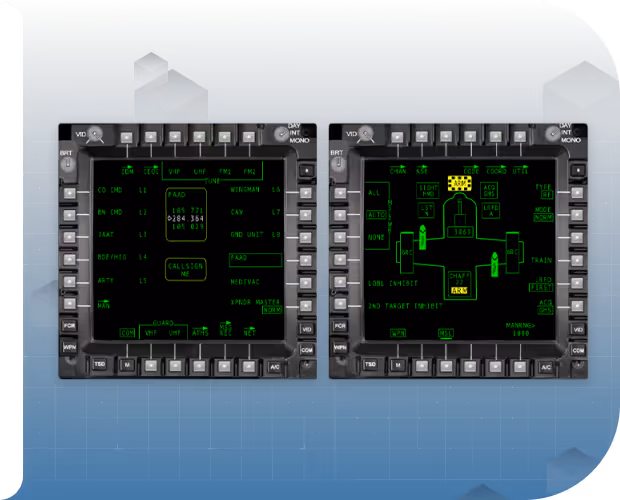

GLS Menu Library

A powerful class library enabling rapid development and prototyping of multi-function display (MFD) menu hierarchy and navigation. Create complex menu structures using script files to control syntax, color, and actions without rebuilding the application.

Aircraft MFD
Aircraft CDU
Communications Gear
Infotainment Systems
Industrial Controls

Request Evaluation

GLS Map Toolkit

Combine multiple geo-referenced map imagery formats and user-defined symbology into a real-time 2D moving map display. The toolkit supports a variety of geo-referenced imagery formats, DTED elevation data, and user-defined image sets allowing users to create any tactical map display.

Runtime features include

Pan/Zoom/Rotate

Offsetting

Layer visibility

Contour lines

Elevation banding

Threat inter-visibility

Request Evaluation

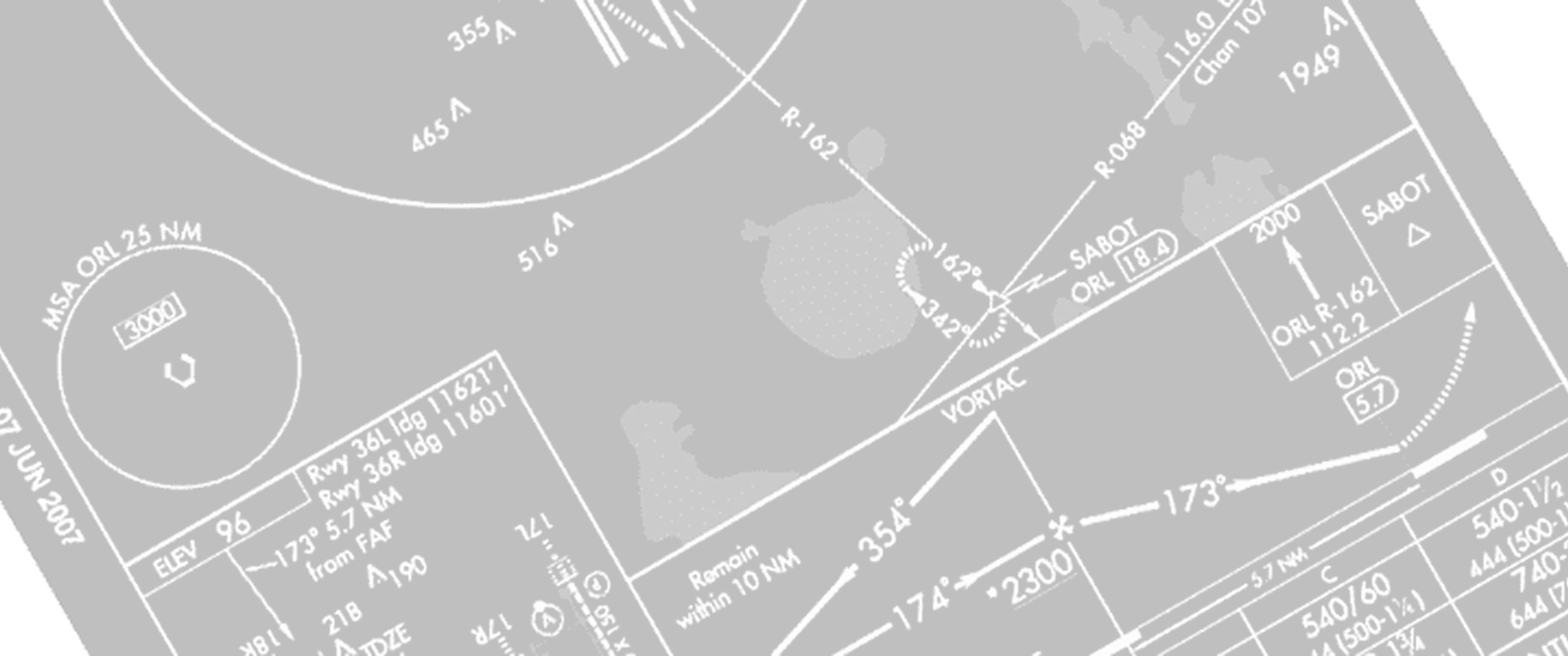

GLS Approach Plate Toolkit

Convert digital Instrument Approach Procedures (IAP) charts produced by the FAA, National Aeronautical Charting Office, into correlated geo-referenced GLS objects for a variety of aeronautical applications. The IAP charts are publicly available for download in PDF format and cover all US airports.

Download IAP Charts

Third-Party Integrations

EP® - 8100 Image Generation System

MAK VR Engage

MAK VR Vantage

Aechelon PC-NOVA™

BI Simulation Blue IG

BI Simulation VBS

Diamond Visionics Genesis RTX
